How to Replace Blower Motor Resistor 1995-2000 Chevy Tahoe
Created on: 2014-03-14
Watch this video to learn how to fix your heat or A/C if the fan won't blow at every speed. The experts at 1A Auto show you how to replace the blower motor resistor in your 96-99 Chevy Tahoe.
-
step 1 :Accessing the Blower Motor Resistor
- Open the glove box
- Push the sides of the glove box in as you pull it out
- Unhook the glove box
- Remove the glove box
-
step 2 :Removing the Blower Motor Resistor
- Remove the two 7mm bolts from the blower motor resistor bracket
- Use a pair of needle nose pliers to undo the clips that connect the wiring harnesses to the bracket
- Press the wiring harness tabs with a flat blade screwdriver
- Disconnect the wiring harnesses
- Pull the bracket down
- Use a flat blade screwdriver to press the tab on the resistor relay
- Pull out the blower motor resistor bracket
- Disconnect the resistor wiring harness from the resistor
- Remove two 7mm bolts from the resistor
- Rotate the resistor upside down
- Pull the resistor forward, down and out
-
step 3 :Installing the New Blower Motor Resistor
- Push the new blower motor resistor into place, being sure not to damage the coils
- Insert the two 7mm bolts into the resistor
- Connect the resistor wiring harness
- Reconnect the relay to the bracket
- Put the bracket into place
- Clip the two wiring harnesses to the bracket
- Insert the 7mm bolts into the bracket
- Connect the two wiring harnesses
-
step 4 :Reinstalling the Glove Box
- Hook on the glove box
- Push in the sides of the glove box as you push the glove box into place
Tools needed
-
Flat Blade Screwdriver
7mm Socket
Ratchet
Needle nose pliers
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Don from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks.
In this video, we're going to show you how to replace the blower motor resistor on this 1996 Chevy Tahoe. The items you'll need for this are a new Blower Motor Resistor from 1AAuto.com, flat blade screwdriver, 7mm socket and ratchet, and a pair of pliers.
Start off by opening your glove box and pushing in the sides and pulling it down, then unhook and pull. Next, you want to remove this two 7mm bolts. I'll just fast forward as Don does this. Now, using a pair of pliers, just push the tabs on the clips at the bottom of these harnesses and push them up and out of that bracket. Now, press the tabs on the top of the harnesses and disconnect them. Now, pull down the bracket and on the top of this relay, just push the tab and pull it free.
Your harness for your blower motor resistor is right here. Just pry back on the tab and pop the harness up and off. Just set that aside, and your resistor is held in with two 7mm bolts. I will just fast forward as Don removes both of those. Once those are removed, you can pull your resistor up and to get it out, you're going to actually have to rotate it upside down. Just keep working it around until it's completely upside down and then pull it forward and then down and out.
Take a new blower motor resistor from 1A Auto and just push it back into place. You want to make sure you don't damage any of the coils and just very carefully lower it back into place. Just again, make sure those coils are okay and that none of them are touching each other. Replace those two 7mm bolts. Now, reconnect your resistor harness. Replace your bracket and reconnect that relay and then take your two harnesses and push both of them back down into the bracket, and replace those two 7mm bolts that hold the bracket into place. Now, reconnect those two harnesses, and then take your glove box, put those hooks back onto those bars. Push the sides in and push the glove box back into place. You're all set.
We hope this helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
Shop Products

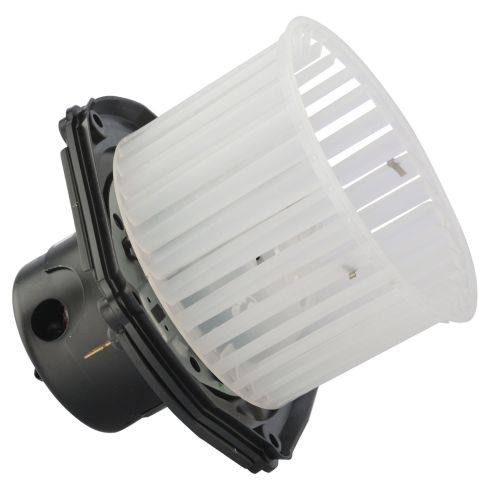

1995-96 Chevrolet GMC HVAC Blower Motor Kit DIY Solutions HVA03423
