How to Replace Blower Motor Resistor 2008-12 Ford Escape

Hi I'm Mike from 1A Auto. We've been selling auto parts for over 30 years.

What's up, guys? I'm Andy from 1A Auto. In this video I'm going to show you how to replace this blower motor resistor on this 2012 Ford escape. If you need this part or other parts for your vehicle, click the link in the description and head over to 1aauto.com.

So when I turn the key on and I have the HVAC on, and I'm going through the blower motor settings--one, two, three, nothing happens. Once I get to setting number four, it comes on full blast. So at this point, I'm going to replace the blower motor resistor. If you have this same problem, you may need a blower motor resistor.

All right, I'm going to open the glove box. Pull that open. Then, on the sides, I'm just going to use my hands and push. Try to get this glove box to flip down, just like that. Now the blower motor resistor is located right here in the top of this HVAC box. What I'm going to do is the connector's a little tricky to disconnect. I am going to use a pick and try to push it on this lock while I lift up on the connector. I'll show you that right there. That's where the lock is. They don't give you much room to get your finger in there, and that will release the tab on that. So disconnect that.

With that out of your way, I'm going to take a eight millimeter socket and extension and a ratchet, and there's two bolts that go down from the top. It's a little bit tricky to get your hands in here. Take these bolts out or screws. There's a couple of screws. Once that's loose, take that screw out, and I'll take the other one out. Now you need the extension more for this other one. Not so much that first one. You might be able to do it without an extension, but take this out. And once it's loose, you can do it by hand, take that screw out, and I can grab the resistor and just slide it up just like that.

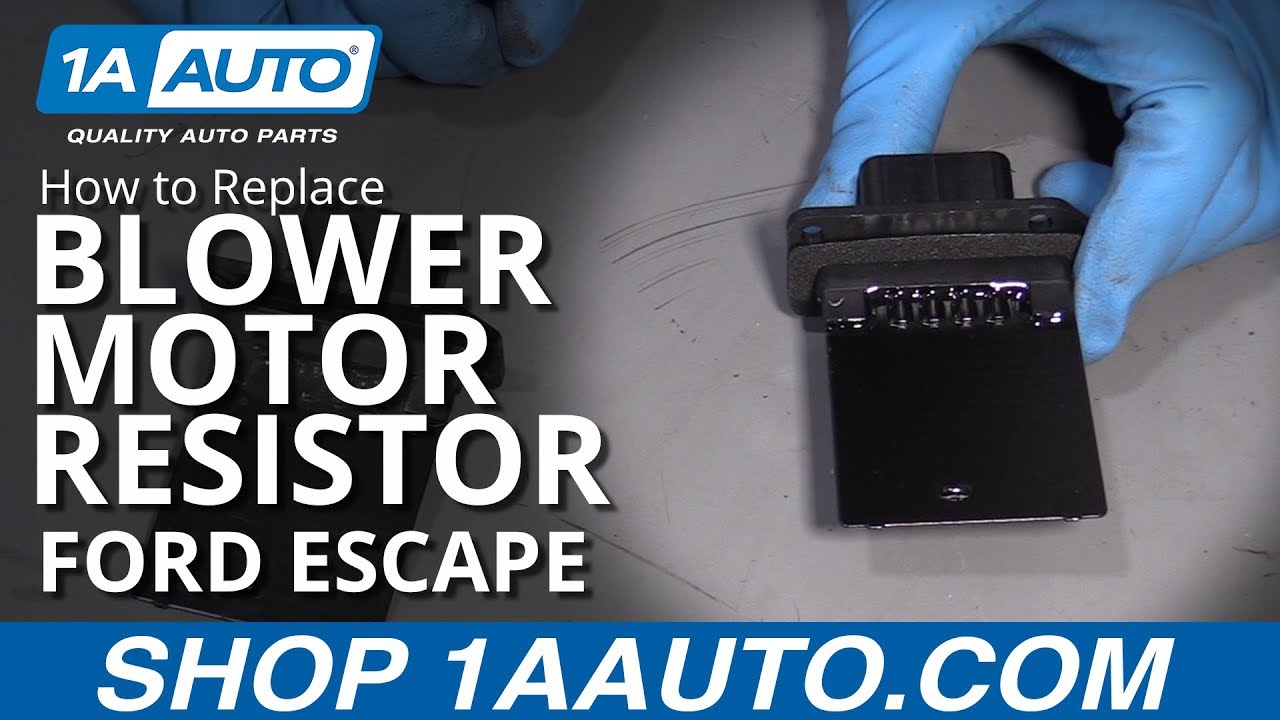

Here's the old resistor. Here's the new blower motor resistor from 1aauto.com. As you can see it's got the same shape. You look at the end and the connector is the same; the other side is the same. Get yours at 1aauto.com and you'll be ready to rock and roll.

Now I'll take the new resistor. Get it in position and slide it down just like that. Kind of hard. Really can't see what you're doing. There are a couple of tabs that line up with the holes on the resistor. Look at the old resistor. This is where the screws go. So with it like that, there's a screw there and a screw there. And then there's two little pins that line the resistor up. So get both screws started just by hand. And I'll take my eight millimeter socket and ratchet, I'll tighten these down. It is in plastic, so you just want to snug it, not too tight. Okay with those tight, then I can reconnect the connector. Line that up and lock it in place. Again, take the glove box, push this in a little bit, and close that.

Right now we're going to test it. Turn the key on, and I can hear the blower motor working on setting one, number two, on three and also four. So we fixed the problem.
