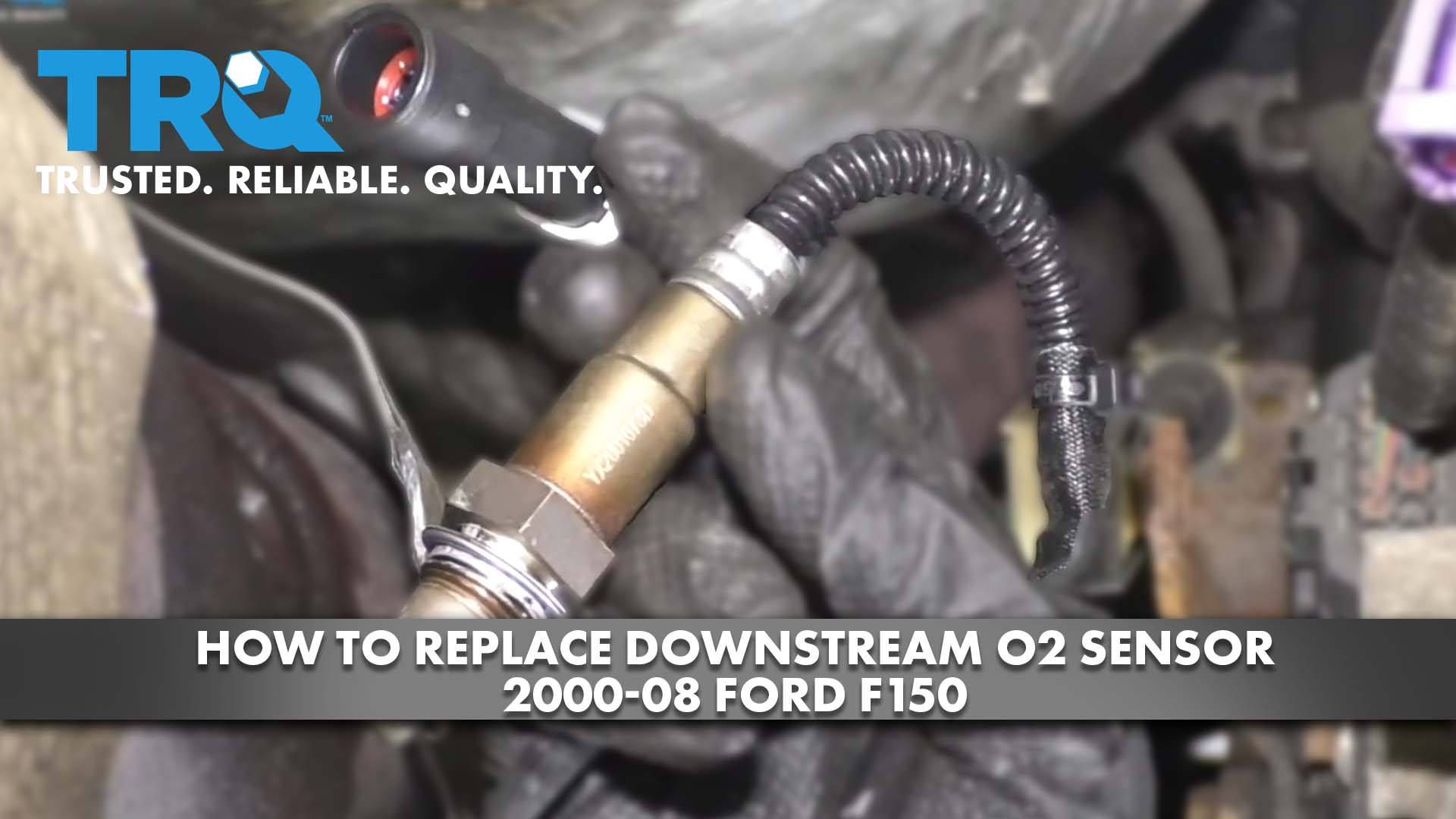

How to Replace Downstream O2 Sensor 2000-08 Ford F150

Okay, friends. It's time to get started on our downstream O2 sensor. You're gonna find that located on your vehicle's exhaust. On this particular vehicle, it's right inside the catalytic converter. I'm gonna be doing the one on the driver's side, but the passenger's side would be approximately the same. One of the first things I like to do is disconnect the wiring. You can take a small pocket screwdriver or even just your finger, push on this tab, and then separate the two pieces.

I always like to take a peek at my connectors on both sides just to make sure I don't see any funny colors. I know I'm replacing the O2 sensor, but if I see some corrosion on this side, more than likely, there's some on the other side. At this point, I'm gonna remove the O2 sensor from the catalytic converter. You're gonna need a special tool for that, and it looks like this right here. You can see that it has a slot, and it's gonna fit right over the wire for your O2 sensor. Fits right on the O2 sensor, and try to break it free. There we are. Okay. There's our O2 sensor, friends.

Okay, friends. Now, it's gonna be time to get our brand new downstream O2 sensor in here. You're gonna notice on the threads that you have a little bit of Never-Seez. Leave it on there, but be careful not to get in on the sensing agent. We're gonna start this in by hand, and then, once it bottoms out by hand, we'll go ahead and snug it up with our tool. So now, we're just gonna go ahead and snug this up. I have it so it's bottomed out. We're just gonna go a teeny bit more because we wanna make sure that we crush down that gasket. That's nice and tight right there.

Next, of course, you wanna connect in the O2 sensor to the harness. Push that right in. Make sure it's locked. Give it a nice tug. If you have any excess cable, make sure that you just, kinda, tie this up so it's gonna be nice and secure. I'm gonna use a wire tie. Okay, friends. So, you finished your O2 sensor. Great job. Now, what you need to do is if you had a check engine light on, clear that code. Take your vehicle for a road test. If your check engine light stays off, you did great.
