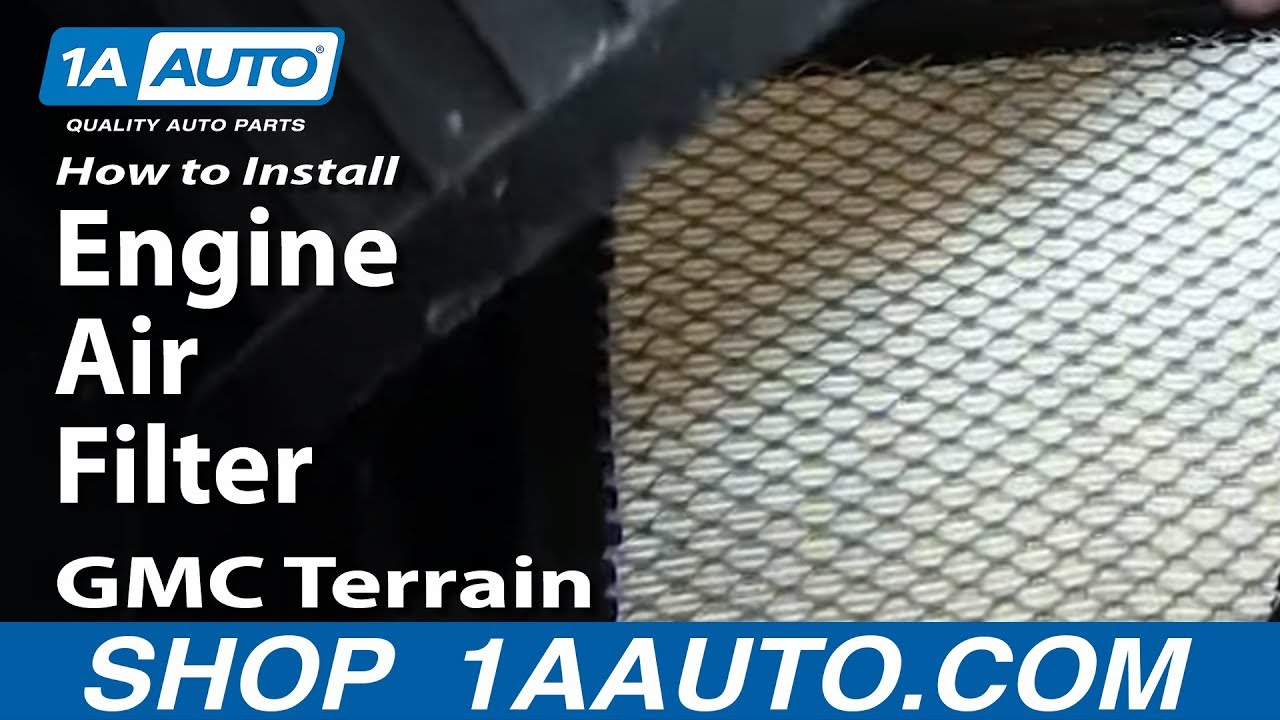

How To Replace Engine Air Filter 2010-17 GMC Terrain
Created on: 2014-02-05
Find out how to replace the engine air filter with this how-to video. Follow the steps to do this easy repair yourself!
-
step 1 :Removing the Air Filter
- Disconnect the air intake hose
- Remove the four T25 screws lining the air box
- Lift the top of the air box and remove the air filter
-
step 2 :Installing the Air Filter
- Lift the air box and insert the air filter
- Insert the four T25 Torx screws along the air box
- Connect the air intake hose
Tools needed
-
Socket Extensions
Ratchet
T25 Torx Socket
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Don from 1A Auto. I hope this how-to video helps you out, and the next time you need a part for your vehicle, think of 1AAuto.com. Thanks.
In this video, we're going to show you how to replace the air filter on this 2014 GMC Terrain, and the only tool that you're going to need for this is a T25 Torx bit and a ratchet with an extension.
Your air intake box is located right here. Push on this tab on the top of the hose and pull it free, and then you want to remove these four T25 bolts lining the air intake box. We'll just fast-forward as Don does this. Pull the top of the box up and pull your air filter out.
Push your new air filter down in place, and put the top of the air intake box back down. Replace those four T25 Torx bolts, reconnect that hose, and you're all set.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
