How to Replace Wheel Bearing Hub 2000-05 Chevy Monte Carlo
Created on: 2014-07-22
If the wheel bearing is worn or noisy, learn how to replace it yourself. This how-to video will show how to replace the wheel hub, including torque specs
-
step 1 :Removing the Wheel
- Loosen the lug nut covers with a 19mm socket
- Loosen the hub nut with a 35mm socket and a pipe for leverage
- Leave the hub nut on for a few threads
- Loosen the lug nuts with the vehicle on the ground
- Raise the vehicle with a floor jack
- Secure the vehicle on jack stands
- Remove the lug nuts
- Pull off the wheel
-
step 2 :Removing the Brake Caliper and Rotor
- Remove the hub nut
- Pry the brake pads into the caliper with a flat blade screwdriver to push in the pistons
- Remove the 15mm bolts from the brake caliper
- Pull the caliper up and off
- Remove the 15mm bolts from the caliper bracket
- Remove the caliper bracket
- Remove the rotor
-
When removing the 13mm bolts from the hub, do not damage the boot on the CV axle
step 3 :Removing the Hub
- Remove the three 13mm bolts on the back of the hub
- Hammer on the side of the hub
- Pull the hub off
-
step 4 :Installing the New Hub
- Put a 13mm bolt on the hub bracket
- Insert the hub into place
- Insert and tighten the 13mm bolts to the hub
- Torque the 13mm bolts to 65 ft/lbs
-
step 5 :Installing the Rotor and Brake Caliper
- Slide the rotor on
- Thread on one lug nut to hold the rotor in place
- Put the bracket back into place
- Start the 15mm bolts by hand and tighten them
- Tighten the bolts to 85 ft/lbs of torque
- Install the new brake pads into the bracket
- Apply grease to the brake pad tabs
- Insert the brake pad slides
- Put the caliper on
- Tighten the bolts to 75 foot-pounds
- Replace the hub nut cap preliminarily
-
step 6 :Reattaching the Wheel
- Slide the wheel into place
- Start the lug nuts by hand
- Tighten the lug nuts preliminarily
- Lower the vehicle to the ground
- Tighten the hub nut
- Torque the hub nut to 159 ft/lbs
- Tighten the lug nuts to 100 ft/lbs in a crossing or star pattern
- Reattach the center cap
- Tighten the lug nut covers with a 19mm socket
-
step 7 :Testing the Brakes
- Pump your brakes repeatedly until they feel firm
- Test your brakes at 5 miles per hour and then 10 miles per hour
- Road test the vehicle
Tools needed
-
35mm Socket
13mm Socket
A Piece of Pipe (for leverage)
Socket Extensions
Torque Wrench
Hammer
15mm Socket
Jack Stands
19mm Socket
Flat Blade Screwdriver
Brake Fluid
Ratchet
Floor Jack
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Mike from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks.
In this video, we're going to show you how to replace a front hub on this 2003 Chevy Monte Carlo. And we show you on the passenger's side, but the driver's side is the same procedure. The items you'll need for this include a new front hub from 1AAuto.com, a 13mm, 15mm, 19mm, and 35mm socket and ratchet with an extension, flat blade screwdriver, a hammer, a torque wrench, and jack and jack stands.
Start off by just loosening up these lug nut caps. Now loosen up this 35mm hub nut. And you can see he uses a piece of pipe for some extra leverage. Now, we're just going to use an air tire tool to speed up this process. And you want to remove the hub nut most of the way, just leave it on a few threads, just to have it in place like this. And now you can remove your lug nuts. And if you don't have air-powered tools, you want to loosen these up while the vehicle is on the ground, then raise the vehicle, and remove them the rest of the way. If you do have air-powered tools, you can just remove them right here. Now you can just pull your wheel off and remove the hub nut.
Now you just want to pry in on the brake pads, and this will push in the piston on the caliper. And then remove these two 15 mm bolts, and we'll just fast-forward as Mike does this. Now just pull your caliper up and off. You can just set that aside. Then you want to remove these two 15mm bolts right here, and we'll fast-forward as Mike does that. And now you can just pull your caliper bracket free, and then pull your rotor free. And then you want to remove these three 13mm bolts on the back of the hub. The third one's right here. And we'll just fast-forward as Mike removes those.
You will need an extension to get to the bolts, as well as you want to make sure that you don't do any damage to the rubber boot that's on the CV axle. And just hammer on the side of the hub to break it free, it just pulls off.
Then put a bolt through, and take your new hub, push it back into place on the axle, hang the bracket up on that bolt, and then push the hub back in line with that bolt. And once you have the hub lined up, just tighten up that bolt, replace the other two, and then tighten up all 3 of them. And then just torque these three bolts to 65 foot-pounds.
Slide your new rotor into place, and then just replace a lug nut to hold it into place. Now put the bracket back on, and replace those two 15mm bolts and tighten them up. And now torque these two bolts to 85 foot-pounds. And push your brake pads into place. If these slides were seized up earlier when you removed them, just apply some brake grease to them. And then put your caliper back down into place. And then push those slides back into place on the back. And we'll just fast-forward as Mike tightens those up.
Now torque these two slides to 75 foot-pounds. Replace your hub nut preliminarily. And then replace your wheel and each of the lug nuts. And you just want to tighten them preliminarily, lower the vehicle, and tighten them the rest of the way. Tighten up the hub nut, and now torque it to 159 foot-pounds. And then torque these lug nuts to 100 foot-pounds in a crossing pattern. And replace your hub cap and tighten up those lug nut caps.
Whenever you do any work on the brakes, you want to just pump the brake pedal until it firms out, and then do a stopping test from 5 miles per hour, then 10 miles per hour.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
Shop Products

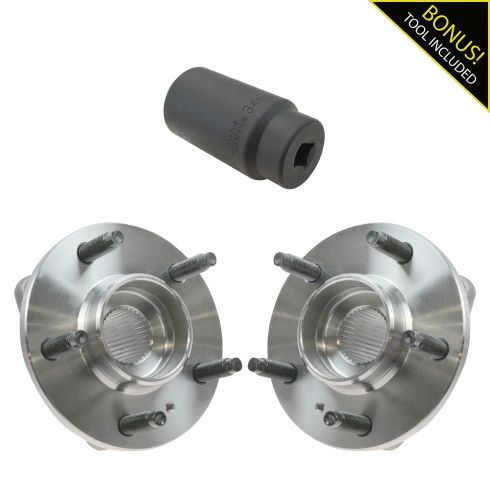

Chevrolet Buick Pontiac Front Driver & Passenger Side 2 Piece Wheel Bearing & Hub Assembly Set TRQ BHA53365
