How to Replace Fog Driving Light 2002-06 GMC Envoy XL
Created on: 2014-08-20
How to install, repair, fix, change, or replace a broken, damaged, burned out, cracked, faded, cloudy or chipped fog light on 02, 03, 04, 05, 06, 07, 08, 09 GMC Envoy, Envoy XL, or Envoy XUV.
-
step 1 :Removing the Fog Light
- Reach behind the fog light
- Disconnect the wiring harness
- Remove the three 10mm nuts from the fog light
- Push the fog light from behind and pull it out from the front of the vehicle
-
step 2 :Servicing the Bulbs
- Twist the bulb socket counterclockwise out of the light
- Pull the bulb off of the socket
- Push on the new bulb
- Twist the bulb clockwise into the light
-
step 3 :Installing the Fog Light
- Insert the fog light into place
- Replace the three 10mm nuts
- Connect the fog light wiring harness
Tools needed
-
10mm Socket
Ratchet
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Mike from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks.
In this video, we're going to show you how to service the bulbs as well as replace the entire fog light assembly on this 2003 GMC Envoy. It's the same part and similar process on the regular Envoys on all the models made after 2002. The items you'll need include new fog lights from 1AAuto.com and a 10mm socket and ratchet.
Reach up behind the back of your fog light. Push down on this tab and disconnect the harness. Then you can just service the bulb by twisting it counterclockwise, pulling it out, twisting your new one in, and turning it clockwise to lock it.
Now to remove the entire assembly, you just want to remove these three 10mm nuts. We'll fast-forward as Mike does that. Now push the fog light from behind until you can grip it from the front and pull it up the rest of the way.

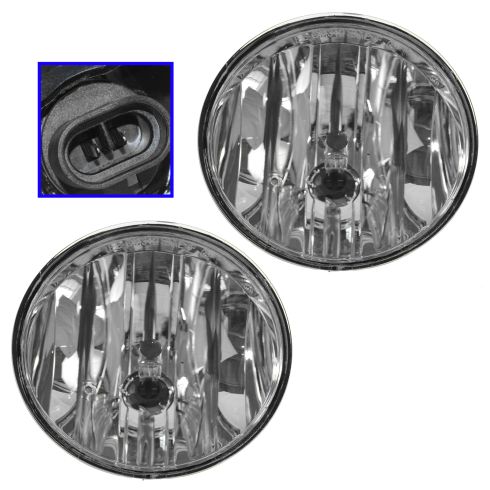

On the left is the old fog light; on the right is the new one from 1A Auto. You can see they're identical, and they'll fit exactly the same. Take your new fog light, push it back into place until those studs pull through, and then replace those three 10mm nuts, tighten them up, and reconnect the harness. Then you're all set.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
